Choosing the right perforated metal patterns is essentially a trade-off between physics and style. If you prioritize open area for massive airflow, you might compromise the sheet’s stiffness, causing it to “oil-can” or rattle under pressure. I’ve spent years watching engineers struggle with this balance; they often overlook how a simple shift in hole patterns affects the final installation.Think of perforation patterns as the building’s lung. A standard 60-degree staggered round hole is usually the workhorse, providing about 40% to 51% open area without the metal losing its “memory.” But move to a custom geometric design, and suddenly the CNC press has to work twice as hard.
I once saw a project where the client insisted on a straight-row perforated sheet designs for a grain screener. It looked clean, sure, but the lack of staggering created weak shear lines that caused the panel to split under a 12kg load. Always check your pitch-to-diameter ratio. If the bridges between holes are less than the material thickness—say, 1.5mm on a 2mm plate—you’re asking for a structural failure during the first high-heat cycle.

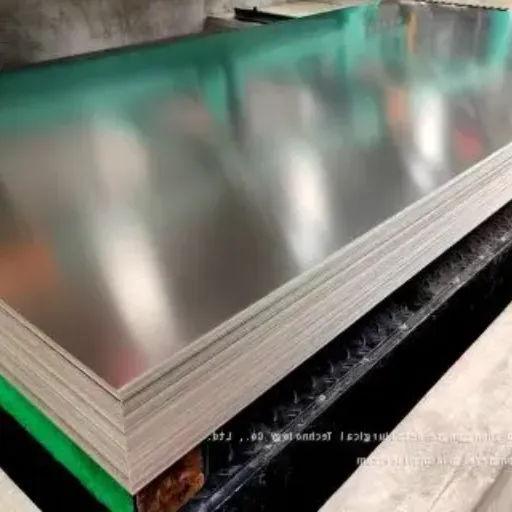

Why Pattern Choice Dictates Performance
Every hole you punch out of a sheet is a trade-off. You are essentially removing strength to gain utility, and how you distribute those voids determines whether the panel thrives or buckles. Perforated metal patterns aren’t just about the “look”—they are the structural blueprint for how the metal will react to tension, wind, and weight.
Impact on Structural Load
The “bar” or “bridge” between holes is the only thing keeping your sheet from turning into a flimsy piece of foil. If you opt for a high-density pattern where the bridge is narrower than the material thickness—say, 1.2mm bridges on a 2mm thick plate—the internal stresses from the punching press will likely cause the sheet to “bow” like a potato chip. I’ve seen custom perforation patterns fail spectacularly on industrial walkways simply because the engineer ignored the shear lines. Staggered patterns usually distribute the load more evenly than straight rows, preventing the metal from snapping along a single axis.
Airflow and Open Area
Open area is the king of HVAC and filtration specs. To find the sweet spot, we calculate the percentage of the sheet that is actually missing; for a standard 60-degree staggered round hole, the formula is $OA = (D^2 \times 90.69) / P^2$.
Getting this wrong by even 5% can choke a generator or cause a pressure drop that burns out a fan motor. I remember a project where the client requested a 63% open area for a dryer screen. It sounded great on paper, but the narrow metal bridges couldn’t handle the 180°C heat cycles and the whole thing warped within a week. You have to balance the need for air with the reality of metallurgy.
Aesthetics vs Functional Needs
Architects often chase perforated sheet designs that mimic organic shapes or complex gradients, which is fine for a lobby wall but a nightmare for structural cladding. When you prioritize aesthetics, you’re often dealing with varying hole sizes that create “tension hot spots” in the metal.
For hole patterns used in public spaces, you also have to consider the “finger trap” factor—holes between 8mm and 25mm can be a safety liability in schools or parks. It’s often better to go with a tighter, more uniform pattern that provides the same visual transparency without the mechanical weaknesses or safety risks. Still, if you’re purely after a “vibe,” laser-cut decorative patterns offer more freedom than traditional punched hits, though the per-panel cost will definitely reflect that.
The Versatility of Round Hole Patterns
Round holes are the absolute bread and butter of the perforated metal patterns world. Walk through any industrial site and you’ll see them everywhere, from grain sifters to heavy-duty machine guards. They are popular for a simple reason: the tooling is incredibly durable and the circular shape naturally resists the stress concentrations that cause square holes to crack at the corners.
60-Degree Staggered Is Standard
In my years on the shop floor, I’ve found that about 70% of all orders specify the 60-degree staggered layout. It’s the strongest of all perforation patterns because the holes are offset, ensuring the metal “bridges” between them are uniform in every direction. This triangular arrangement offers the highest open area—often reaching up to 58% or 63%—without making the sheet feel like a piece of wet noodle.
When you need structural integrity and high airflow, this is your go-to. It balances the load so well that you rarely see the “oil-canning” effect common in other hole patterns.
Straight Row Alignment Benefits
Sometimes, you don’t want the staggered look. Straight row perforated sheet designs offer a clean, linear aesthetic that architects love for ceiling panels or wall cladding. But be careful—straight rows create “weak lines” where the metal can bend or tear much more easily than a staggered layout.
I once worked on a decorative interior project where the client insisted on straight rows for a 2.0mm aluminum sheet. It looked sharp and modern, yet we had to add extra support framing because the sheet lacked the multi-directional stiffness of a staggered pattern. It’s a classic case of style requiring a bit more structural backup.
Round Holes in Filtration
Round holes are the gold standard for sorting and liquid filtration. Because they lack sharp internal angles, debris doesn’t get “wedged” in the corners as easily as it does in square or slotted patterns. This makes them much easier to backwash or vibrate clean in a high-speed industrial setting.
Whether you’re filtering water at 45 gallons per minute or sifting gravel, the round geometry provides a consistent “pass or fail” metric for particle size. If a rock is 10.1mm, it simply won’t go through a 10mm round hole. It’s reliable, predictable, and remarkably efficient.
Common Hole Size Ratios
There is a “golden rule” in punching: your hole diameter should generally not be smaller than the material thickness. If you try to punch a 1.5mm hole through a 3mm stainless steel plate, you’re going to snap your punch pins faster than you can count them.
Typically, we see a 1:1 ratio as the safe minimum. For most perforation patterns, a 3mm hole on a 5mm pitch is a very standard, “safe” spec that keeps the manufacturer happy and your costs down. If you push the limits with a 0.8mm “micro-perf” on a thick plate, expect the price to skyrocket due to the slow press speed and frequent tool breaks.
Are Square and Slotted Patterns Better for Your Project?
While round holes are the default for a reason, they aren’t a magic fix for every engineering hurdle. Sometimes you need a specific perforation patterns strategy that handles rectangular materials or maximizes the “see-through” factor. Square and slotted designs offer a distinct geometric edge, but they come with their own set of mechanical quirks that can trip up an inexperienced buyer.
Square Holes for High Visibility
If you are designing a security screen or a high-end equipment guard, square hole patterns are likely your best bet. They provide a significantly higher open area—often pushing past 62%—compared to round holes of the same width. This makes them perfect for applications where you need to maximize light flow or visibility without making the panel look like a piece of flimsy chicken wire.But here is the catch: square corners are notorious “stress raisers.” In high-vibration environments, I’ve seen cracks start at those sharp 90-degree angles and rip through a 14-gauge sheet in no time. If your project involves constant mechanical movement, you might want to ask for slightly radiused corners to keep the metal from fatiguing prematurely.
Slotted Holes for Sorting
Slotted perforated sheet designs are the workhorses of the sifting and sorting world. If you’re processing elongated materials—think grain, seeds, or even recycled plastic pellets—a round hole will catch and clog, but a slot lets them slide through. I once consulted on a brewery project where they swapped their mash tun screens to a side-staggered slot; the drainage efficiency jumped by nearly 18% overnight.It acts like a directional filter. By aligning the slots with the flow of your material, you can achieve a “self-cleaning” effect that saves hours of maintenance. We usually see these in “end-staggered” or “side-staggered” arrays, depending on whether you want the material to tumble or slide.
Side-Staggered vs End-Staggered
When you move away from round holes, the orientation of your perforation patterns becomes a major structural decision. End-staggered slots run parallel to the length of the sheet, providing a very clean, vertical look that handles longitudinal tension well. Side-staggered patterns, however, are often tougher when the sheet needs to be rolled into a cylinder.I’ve seen folks get this wrong on vibrating conveyor belts. If you pick the wrong stagger relative to the direction of travel, the metal “bridges” will wear down unevenly, leading to a wavy, distorted panel within a few months of use. It’s not just about the hole; it’s about how the remaining metal—the skeleton—is aligned to fight the forces you’re throwing at it.
3 Ways Decorative Patterns Enhance Modern Design
Decorative perforation patterns have moved far beyond simple vent covers. Today, architects use these metallic skins to manipulate light and shadow as if they were working with a digital paintbrush. It’s about creating a “veil” for the building—something that provides privacy while remaining semi-transparent.
Hexagonal Honeycomb Visual Appeal
The hexagon is nature’s most efficient shape, and in perforated sheet designs, it offers a high-tech, futuristic aesthetic that round holes simply can’t match. You get an incredibly high open area, often pushing 65% to 78%, which is perfect for massive air intake grilles on data centers or luxury car showrooms.
I remember a project in downtown Chicago where we used a large-scale hex pattern for a parking garage facade. Because of the 120-degree angles, the sun caught the metal edges differently at every hour, making the building appear to shimmer like liquid mercury. It’s a bold choice, but you need to watch the “bridge” width; if the metal between hexes is too thin, the whole panel can become “floppy” during installation.
Custom Ornate Geometric Shapes
When standard grids feel too industrial, custom hole patterns allow for cloverleafs, Grecian urns, or even complex Moorish star designs. These are the darling of the hospitality industry. Think of a high-end hotel lobby divider—the metal needs to feel like a piece of jewelry, not a piece of factory equipment.
Using a CNC turret press, we can mix different shapes on a single sheet. I’ve seen some brilliant perforated sheet designs that use tiny diamond shapes to create a privacy screen that still lets 35% of ambient light through. It’s more expensive because of the specialized tooling, yet the “wow factor” usually justifies the extra $40 or $50 per square meter for premium retail spaces.
Creating Textures with Gradients
Gradients are the ultimate trick in the modern architect’s bag. By varying the hole sizes—say, starting with 2mm holes at the bottom and gradually increasing to 25mm at the top—you create a “fading” effect. It’s like a low-resolution photograph rendered in steel.
We call this “image perforation.” I once helped a client reproduce a forest canopy on a library facade by using a gradient of different perforation patterns. The holes provided the necessary ventilation for the building’s HVAC system, but from the street, it looked like a giant piece of art. It’s a smart way to hide ugly mechanical equipment behind something truly beautiful.Don’t let the complexity scare you off; most of these designs can be plotted in CAD in a few hours.Next time you’re spec’ing a project, think about how the light will hit the panel at 4 PM—that’s when the real magic of decorative metal shows up.
Choosing the Right Arrangement for Manufacturing
Design is only half the battle; the rest happens on the CNC turret press. If you hand a drawing to a fabricator with impossible spacing, you’ll likely get a call about “tooling stress” or “material fatigue.” Success in manufacturing perforation patterns depends on respecting the physics of the punch.
Calculating the Pitch Distance
Pitch is simply the distance from the center of one hole to the center of the next. It’s the skeleton that holds your perforated sheet designs together. If your pitch is too small, the “bridge” of metal between the holes becomes paper-thin and will likely snap during the punching process.
Usually, we use a 1:1 ratio as a safety floor. If you’re punching 5mm holes, you want at least a 5.5mm or 6mm pitch to keep the sheet from warping like a potato chip. I’ve seen engineers try to push for a 48% open area on a thick 4mm stainless plate with a tight pitch—it’s a disaster waiting to happen. The heat build-up alone will ruin the tool and bow the sheet so badly that even a leveler won’t fix it.
Margins and Unfinished Borders
Margins are the “safe zones” around the edge of the panel where no holes are punched. You need these for welding, bolting, or simply for structural stiffness. If you forget to specify them, the press might punch right up to the edge, leaving you with “half-holes” that are sharp enough to slice through a leather glove.
I typically recommend a minimum margin of 10mm to 15mm on all sides. It gives the installation crew some meat to work with. Some hole patterns look great “full bleed” (holes to the edge), but the structural cost is high. You lose that solid frame, and the panel starts to sag. In one retail project, we had to re-order 40 panels because the lack of margins made it impossible to secure them into the U-channel frames without the metal tearing.
Tooling Costs for Custom Patterns
Standard round holes are cheap because every shop has the dies on the shelf. Move into complex perforation patterns or bespoke geometric shapes, and the price jumps. You aren’t just paying for the metal; you’re paying for the “setup” and the custom tool steel.
Custom dies can easily add $600 to $1,500 to a small job before the first hole is even struck. If you’re doing a massive run—say 500 sheets—that cost gets buried in the volume. But for a boutique office partition? It might double your per-panel price. Still, if you can adapt your vision to use existing house tools, you can usually get that high-end look without the custom tooling tax. I always tell clients to ask for the “tool list” before they finalize their CAD drawings; sometimes a 0.5mm change in hole size saves you a grand.
